When selecting hose reels, please note that the parameters hose length, nominal diameter (NW) and the maximum permissible pressure influence each other in the reel design.
You are here:
High-pressure hose reel
STH-250 high-pressure hose reel
| Technical data | |
|---|---|
| Material | Edelstahl |
| Pressure max. | 300 bar |
| Max. load capacity | 100 kg |
| Hose length NW 6 max. | 200 m |
| Hose length NW 8 max. | 125 m |
| Hose length NW 10 max. | 100 m |
| Iteam no. (without trolley) | 0201541 |
| Iteam no. (with trolley) | 0201544 |
Variants
STH-150
| Technical data | |
|---|---|
| Material | Stainless steel |
| Pressure max. | 300 bar |
| Max. load capacity | 100 kg |
| Hose length NW 6 max. | 100 m |
| Hose length NW 8 max. | 75 m |
| Hose length NW 10 max. | 50 m |
| LxBxH (without trolley) | 460 x 450 x 460 mm |
| Weigth (without trolley) | 5 kg |
| LxBxH (with trolley) | 800 x 570 x 1150 mm |
| Weigth (with trolley) | 20 kg |
| Connection | M22 x 1,5 AG |
| Iteam no. (without trolley) | 0201540 |
| Iteam no. (with trolley) | 0201542 |

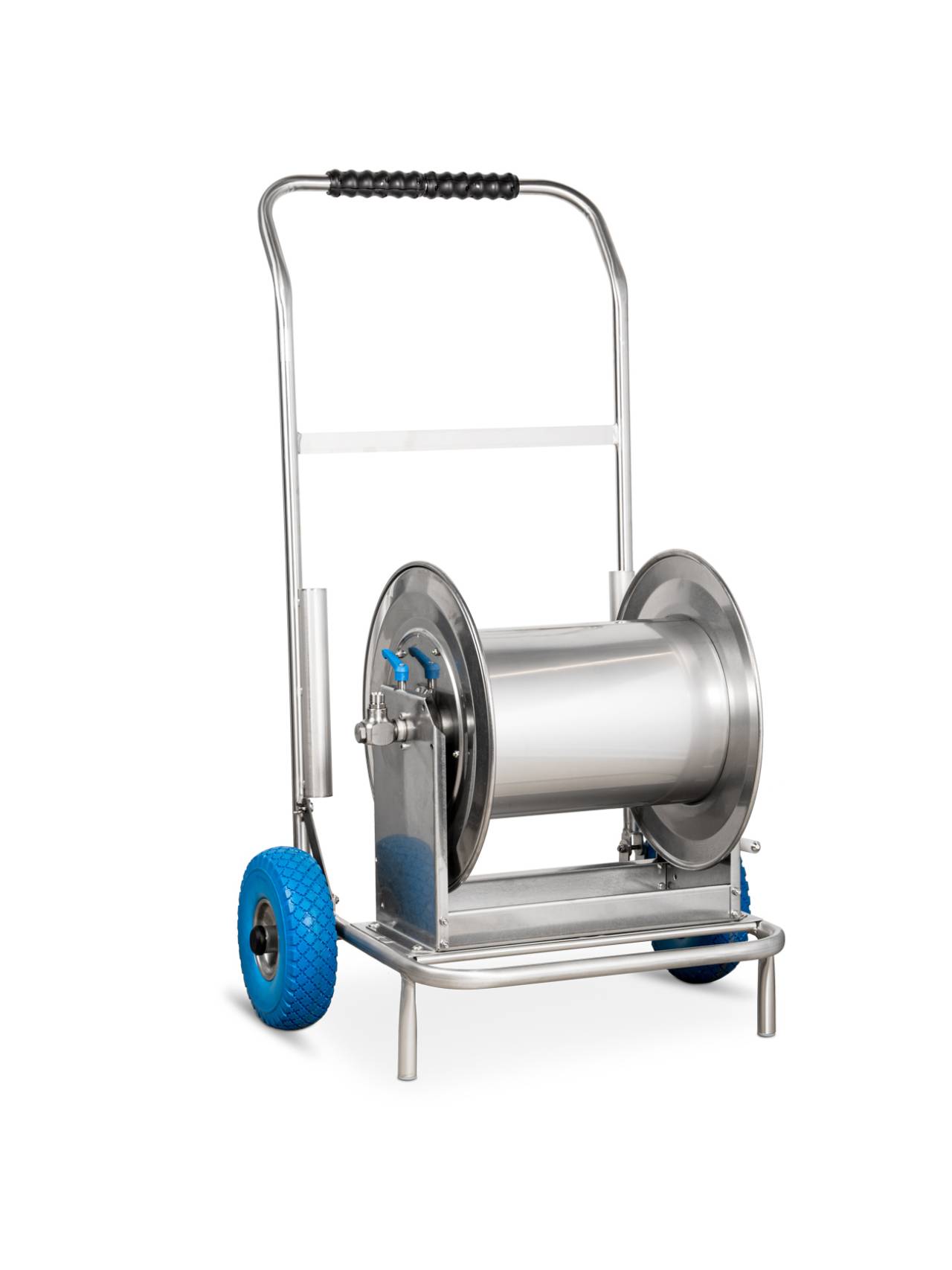

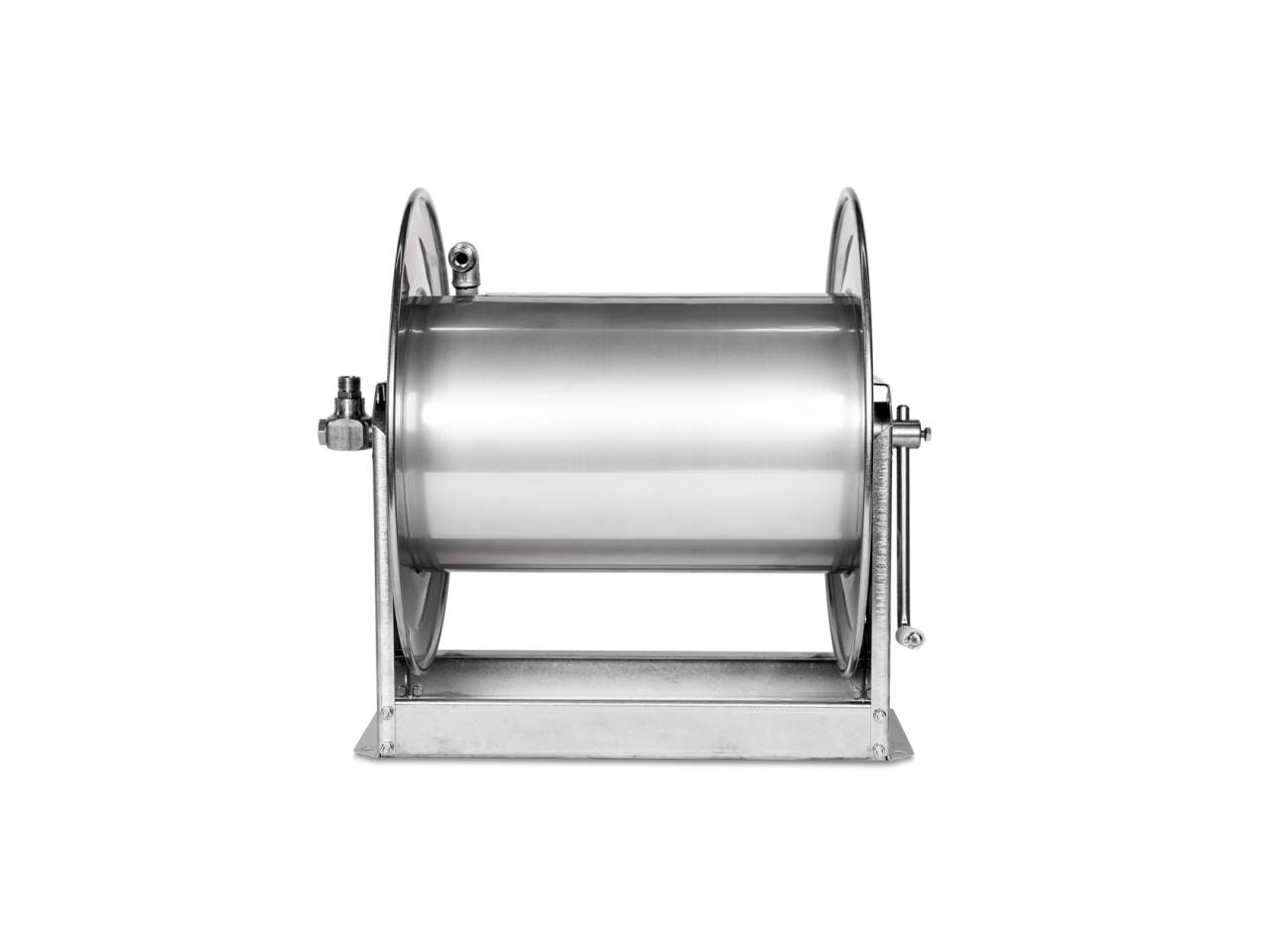

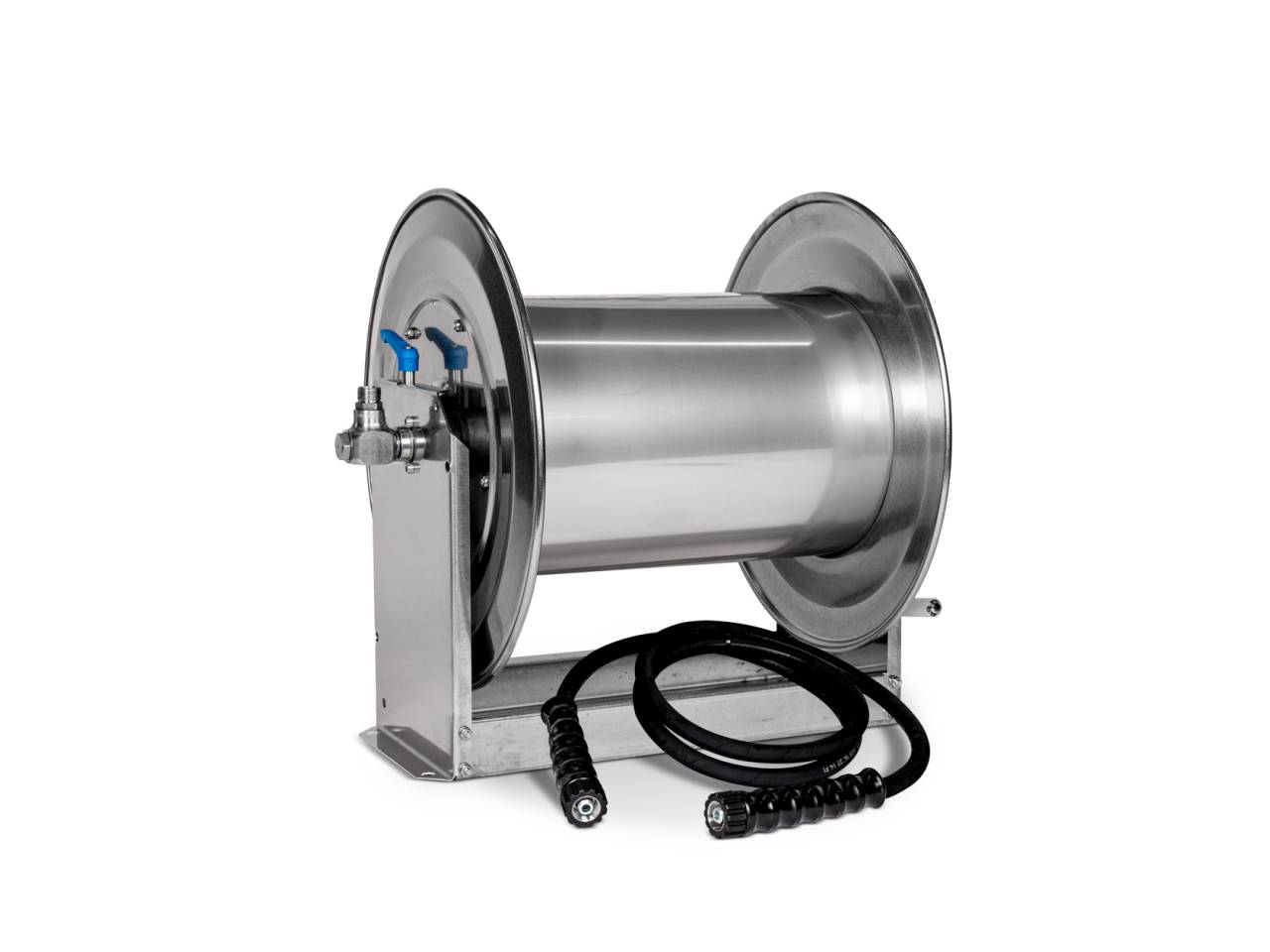

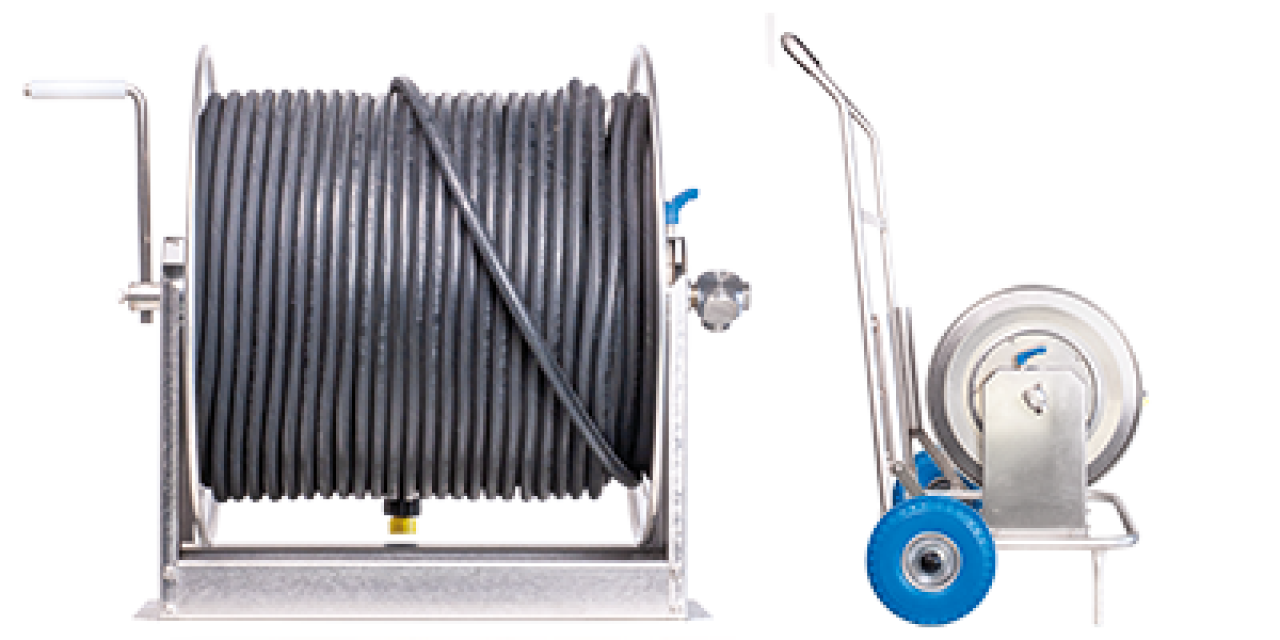

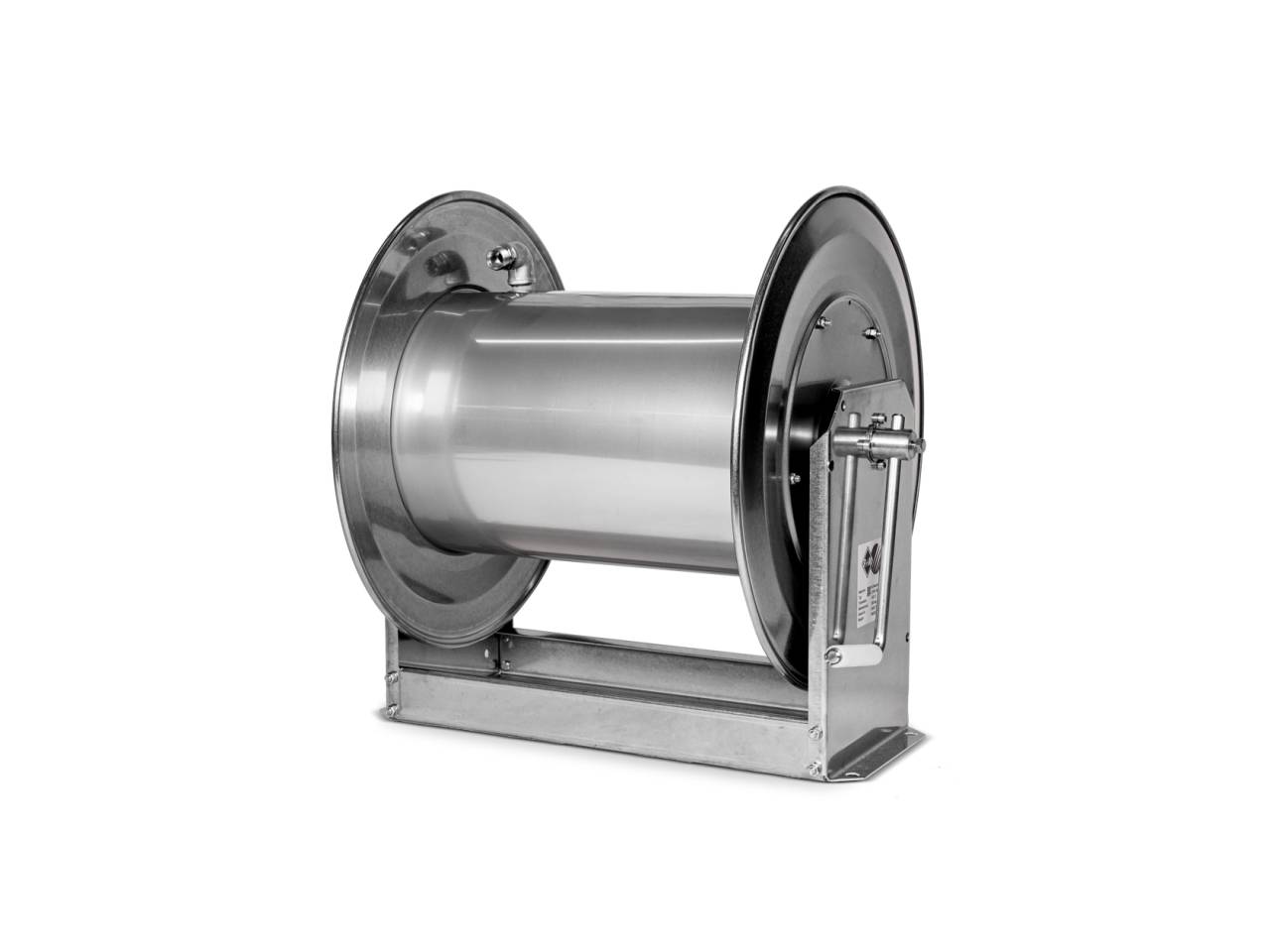

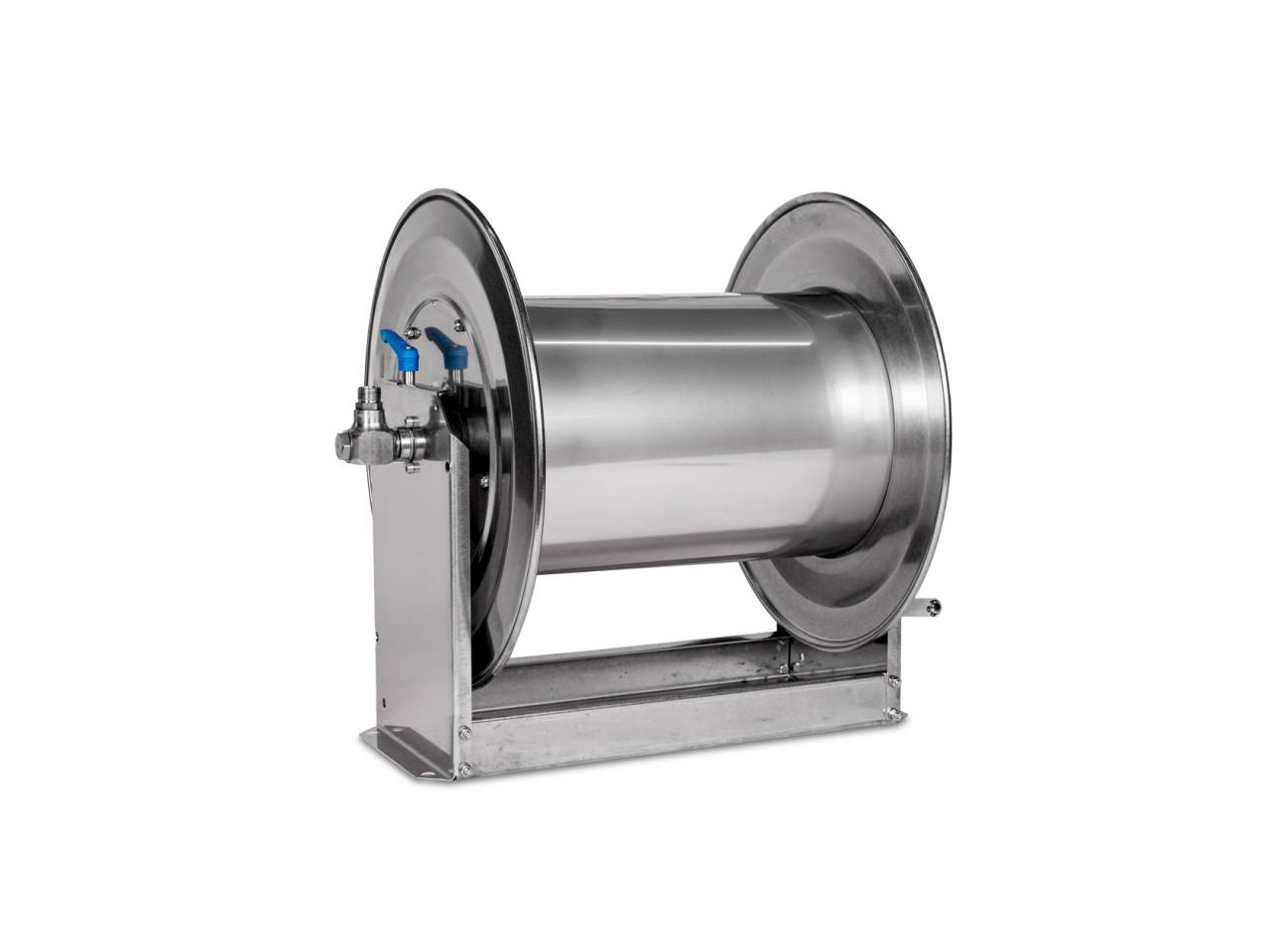

STH-250
| Technical data | |
|---|---|
| Material | Stainless steel |
| Pressure max. | 300 bar |
| Max. load capacity | 100 kg |
| Hose length NW 6 max. | 200 m |
| Hose length NW 8 max. | 125 m |
| Hose length NW 10 max. | 100 m |
| LxBxH (without trolley) | 480 x 465 x 515 mm |
| Weigth (without trolley) | 11 kg |
| LxBxH (with trolley) | 650 x 700 x 1175 mm |
| Weigth (with trolley) | 20 kg |
| Connection | M22 x 1,5 AG |
| Iteam no. (without trolley) | 0201541 |
| Iteam no. (with trolley) | 0201544 |
